Finply

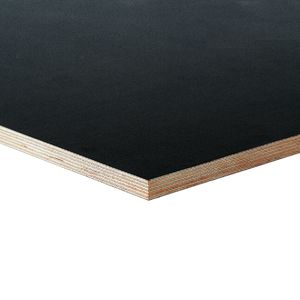

FINNISH MULTILAYER PLYWOOD PANELS IN BIRCH FOR DEMANDING APPLICATIONS

Finnish multilayer plywood panels - high-quality PANALEX Form Plywood can be reused multiple times in industrialised construction projects.

Multilayer plywood panels produced to Finnish standards for large formwork surfaces. PANALEX Form Plywood birch panels consist entirely of birchwood layers. Thickness of each layer is approx. 1.4. mm. The panels are covered on both sides with a wear, heat- and weather-resistant phenolic resin film. Waterrepellent sealed edges. High product quality and strength. Suitable for use on large and medium-sized construction sites. Multiple reuse possible.

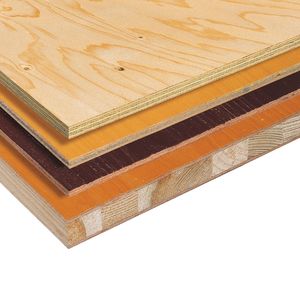

Surface types:

multilayer panels manufactured to Finnish standards and coated with dark brown phenolic film approx. 220 g/m² per side.

Plywood panels without phenolic resin film.

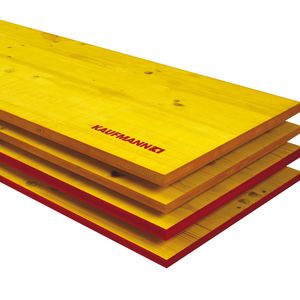

Shuttering panel KAUFMANN K1

NUMBER ONE FOR QUALITY AND DURABILITY - THE ONLY SHUTTERING PANEL WITH SEALED RED POLYURETHANE EDGES.

Advantages of sealed edges with unique red polyurethane seal

• Watertight edges.
• Less concrete residue on edges.
• Ensure better insulation of gaps between installed panels even after repeated use.
• Easy to clean.

Uniform concrete surface

• Fully polished surface coated with layer of high-resistance melamine resin to approx. 130 g/m² on each surface.
• Optimised external slat structure means reduced formation of cracks even after repeated use.
• Precise dimensions - slat structure parallel to longitudinal edges of panel.
• Quality of selected wood and slat structure (just 34 mm) ensure knot diameter is limited.

Longer life

• Our manufacturing processes mean no clips are required.
• Slats have annual rings (mostly vertical type) on the outer layer, making the surface more resistant.
• Central and outer layers entirely closed, all joints glued, no concealed edge bands: absolute stability guaranteed.
• Less breakage of corners even under severe mechanical stress due to bonding of all contact surfaces between slats.
• Precise strengths.
• Cutting anywhere possible without compromising durability.
• 40-piece packs packaged and shipped for storage on appropriate supports.
• Plastic sheets can be supplied for packaging on request (surcharge payable).
• Special formats (for pillars, beam formwork) always available.

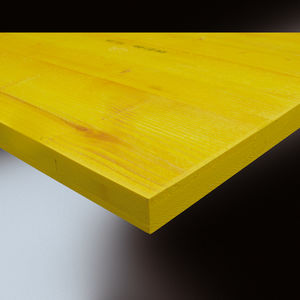

Shuttering panel PANALEX S/T Basic

The high-performance shuttering panel without conceiled edge band

• Block structure forming outer layer runs parallel to longitudinal edge. No special colour requirement as surface features veins and knots. Knots allowed, if fallen out, mostly sealed.
• Fully polished surface coated with layer of high-resistance yellow melamine resin to approx. 120 g/ m² on each surface.
• The edges of the PANALEX S/T Basic shuttering panel are sealed with acrylic resin.
• Exact made-to-measure perpendicularity and dimensions.
• Exact made-to-measure dimensions.
• The shuttering panel can be cut at any point.
• High-quality central European fir.
• No clips used.
• Central and outer layer entirely closed, compact.
• Every second panel has a concealed edge band on one long side for reasons linked to the production process. The shuttering panel structure minimises corner breakage thanks to the compact central section.
• Two 40-piece individual packs (80 pieces in total): 40 have a closing strip on only one long panel side.
• Also available on request special formats of PANALEX S/T Basic.

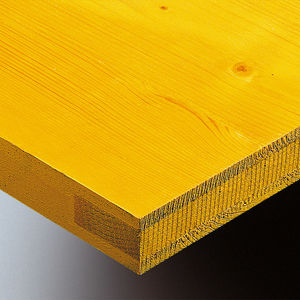

Shuttering panel PANALEX C/T Quality

QUALITY WITH INNOVATIVE EDGE SEALING

• Block structure forming outer layer runs parallel to longitudinal edge. No special colour requirement as surface features veins and knots.
• Polished surface coated with layer of yellow melamine resin to approx. 120 g/m² on each surface.
• New waterproof sealing of edges with acrylic resin combined with pigments and other substances to prevent edge deformations or dampness.
• Exact made-to-measure dimensions.
• High-quality fir.
• Scarcely visible clips used as necessary.
• Closed layers.
• Edge band.
• 40-piece packs packaged and shipped for storage on appropriate supports.
• Special formats of PANALEX C/T Quality (for pillars, beam formwork) also available on request in limited quantities.

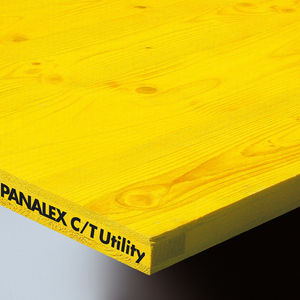

Shuttering panel PANALEX C/T Utility

UTILITY IS NEVER SUPERFLUOUS... PANALEX C/T UTILITY IS THE 3 LAYER SHUTTERING PANEL AT THE RIGHT PRICE FOR THE QUALITY SUPPLIED

• Block structure forming outer layer runs parallel to longitundinal edge. No special colour requirement as surface features veins and knots.
• Polished surface with high-quality finish, coated with layer of yellow melamine resin to approx. 120 g/ m² on each surface.
• Waterproof sealing of edges with acrylic resin.
• Exact made-to-measure dimensions.
• High-quality fir.
• Scarcely visible clips used as necessary.
• Closed layer.
• Edge band.
• 40-piece packs packaged and shipped for storage on appropriate supports.

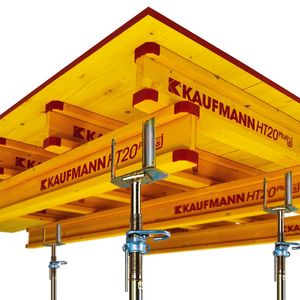

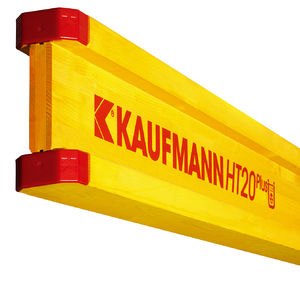

KAUFMANN HT20 Plus

THE FIRST BEAM WITH RED PVC END PROTECTORS

Particular advantages:

• long life,
• non-deformable,
• practical, light,
• available in any legth;

Exclusive end protector system:

• high-quality plastic material,
• shock resistant,
• freeze resistant,
• precision fitting,
• ensures effective protection against splintering at belt ends,
• considerably longer service life,
• no risk of injury caused by splintering of belt ends,
• no reduction of contact surface;
