Formwork accessories from PANALEX
PANALEX formwork accessories make a reliable companion for the entire process of formwork and concreting: beginning with the preparation phase, the process also includes positioning and concreting, formwork stripping and finishing of the concrete. We offer high- quality, professional products at each step.



to the downloads

Formwork accessories

Spacers & fittings

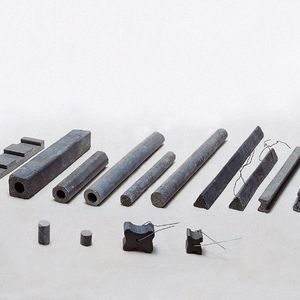

Fibre cement spacers PANACEM
Single and surface spacers

  • Quick and easy installation means considerable savings in terms of time and money.
  • Homogeneous joining of concrete - no cracking - suitable for exposed concrete.
  • Ideal distance and covering of formwork reinforcement bars.
  • Uniform concrete expansion coefficient.
  • High compressive strength in accordance with standard DIN 1045.
  • No cracking leaks at low temperatures.
  • High fire resistance (class A2 = flame retardant), no deformation at high temperatures.
  • High-quality material ideal for watertight concrete.
  • These advantages make PANACEM fibre cement spacers ideal for uses reauiring maximum stability (viaducts, water purifiers, tunnels, etc.)
  • For tubular cement spacers we recommend the use of two sealing caps on each side.
  • No asbestos.

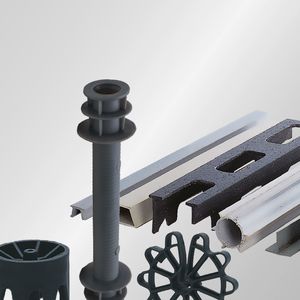

PVC spacers PANAPLAST
Single and surface spacers in PVC

  • Quick and easy installation means considerable saving in terms of time and money.
  • Ideal distance and covering of formwork reinforcement bars.
  • High-quality material ideal for watertight concrete.
  • Thanks to these advantages, it is possible to manufacture sophisticated structures with PVC spacers.

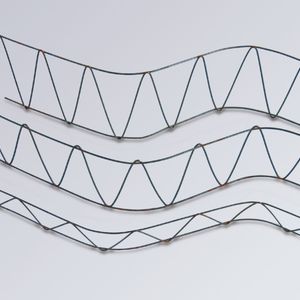

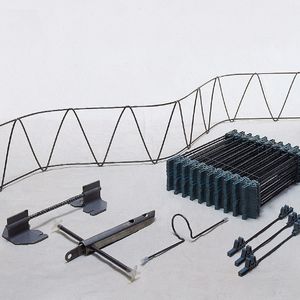

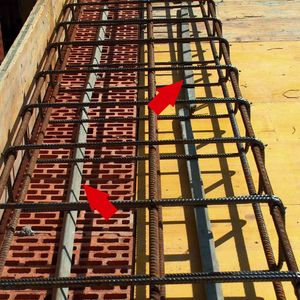

Iron spacers​ PANAFER
The spacers that matches your needs.

These spacers ensure the distance between the lower and upper reinforcements of ceiling and walls. There is no contact with the coating, ensuring high-quality exposed concrete.

Length: 200 cm

Thickness:
4 – 6 – 8 – 10 – 12 – 14 – 16 – 18 – 20 – 22 –
24 – 26 – 28 – 30 – 35 – 40 cm

Profiles
Drip edges and battens

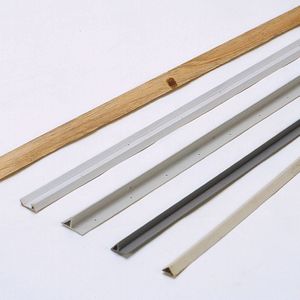

PANALEX PVC drip edges
High-quality, resistant plastic profiles fixed to the formwork with small nails. The drip edge remains in the casting even after formwork removal.

PANALEX triangular batten in PVC with tongue
High-quality plastic profiles, weather-resistant.

PANALEX triangular batten in wood
Wooden, knot-free triangular batten. Easy to use and fix.

PANALEX triangular PVC batten with mounting hole
High-quality plastic profiles, weather-resistant. Resistant to splintering and to release agents.

Reinforcement systems

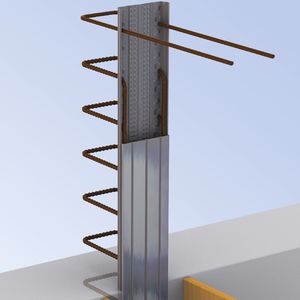

PANALEX Light-Box

The prefabricated reinforcement joint with steel box. The prefabricated reinforcement joint is used to join walls poured at different times.

Applications:

  • Joins between walls,
  • floors,
  • basement wells,
  • staircases.

Advantages:

  • No corrosion damage,
  • perfect cast continuity,
  • easy installation: complete release in one operation saves labour,
  • after removing cover, the bracket remains in the formwork and thus does not protrude dangerously.

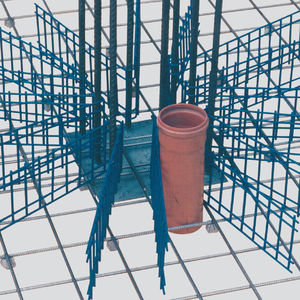

PANALEX AVI-DE Reinforcement punching prevention

Reinforcement for prevention of shear forces in reinforced concrete structures

AVI-DE are bent V-shaped matrix- or ladder- like reinforcement bars, industrially produced using electric resistance welding similar to the steel grates used in construction. The wires of the rails and rungs conform to Group BSt 500 of ÖNORM B 4700 point 3.4.1.2.

AVI-DE are produced in various heights and lengths and can generally be used as punching prevention in all supporting structures for iron-concrete surfaces. They are arranged symmetrically or in star form. The degree of reinforcement can be increased by means of a fishbone arrangement of the individual elements. AVI-DE is especially suited to punching prevention around the columns of panels supported at intervals (floor slabs). The usual application is of eight angular components at a 22.5° angle installed symmetrically around the column head.

The external diameter of the "shear force star" thus created or the side length of the individual element in simple arrangements depends on the panel thickness.

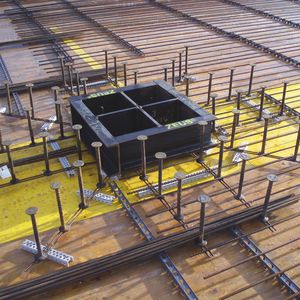

PANALEX Anko®

anko® is certified to standards ISO9001 and SIA161/S2.
Quick delivery, fair price and easy installaton all make anko® punching shear reinforcement products extremely versatile.

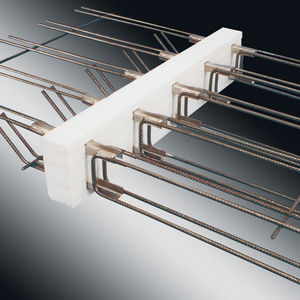

PANALEX Thermokorb

Thermokorb fittings help prevent thermal bridges and save energy. PANALEX THERMOKORB is a thermal insulating connector and carrier for protruding concrete elements such as balconies, loggias etc.

Waterproofing/ white tank system

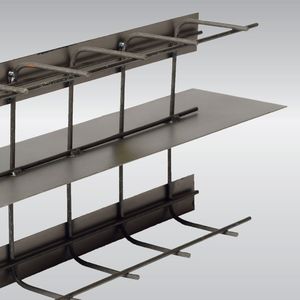

Stop ends in 4 versions

PANALEX TRiGOFORM® stop ends are mechanically welded systems that can on request be fitted with integrated seals, reinforcement, toothed joint or mounting elements of standard or custom length depending on the project.


PANALEX TRiGOFORM® stop ends in BST 500 G steel for all versions of construction joints in reinforced concrete structures.

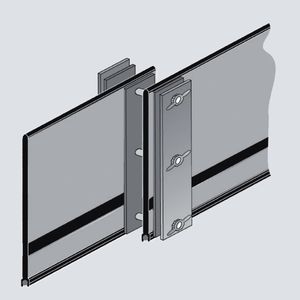

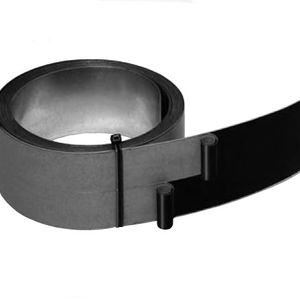

PANALEX waterstop sheet with integrated coating

Recommended for:
floor slab/ wall
wall/ floor area

Quick and secure waterproofing of all construction joints. No need for expensive concrete upstands. Watertight sheets with fixing guides are made of galvanised steel and have a special coating over the entire surface. The coating is resistant to all organic wastes and is ideal for installation in water purifiers. Certified by surveillance inspection on buildings for pressures up to 4 bar with no upstand. A 3 cm concrete covering is sufficient.

Waterstops and accessories
In compliance with DIN standards for joint covers, flat joints only are possible. We can offer everything you need for your construction project.

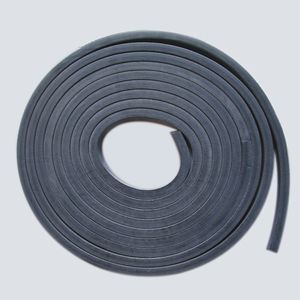

Bentonite hydrophilic tape

Bentonite hydrophilic tape will grow in size in contact with water and provide lasting watertight sealing of holes and cracks. The tape is equipped with a retardant and can be thus affixed regardless of the weather. When mounting, ensure that the concrete surface is clean and the interior of the reinforcement is covered by at least 8 cm of cement. Certificate of general surveillance inspection on buildings for pressures up to 5 bar. Tested for suitability in contact with drinking water: suitable for areas where water level alternates.

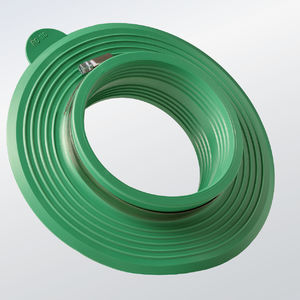

Sealing collar

Sealing collar reliably seals ducts and pipes made of plastic, steel and fibre cement. The openings in concrete floor slabs, walls and shafts are securely sealed against groundwater and pressurised water.

  • Passed the pressure test at 5 bar.
  • Resistant to diluted acids, alkalis, slurry, oil and bitumen.

Installation:

  • soiled pipe walls must be cleaned prior to attaching the sealing collar.
  • Push the sealing collar onto the end of the pipe and slide along before the pipe is installed. It should be mounted centrally on the wall/ floor plate.
  • Use a screwdriver to tighten the clamping straps sufficiently to prevent the sealing collar from shifting during concreting.

Formwork systems

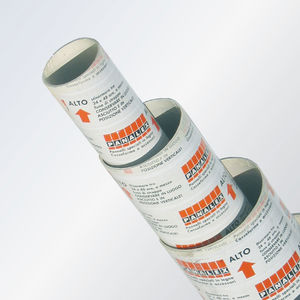

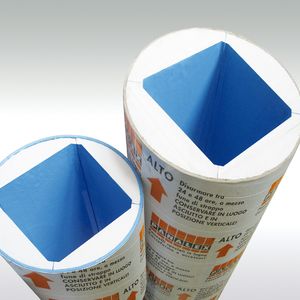

Cardboard formwork

Formwork for pillars made of tough, weather-resistant cardboard with ripcord for straightforward form release. Ripcord release saves time.

Smooth, perfect cement surface.

Version

  • internal smooth surface and ripcord
  • spiral format: spiral structure is scarcely visible; no ripcord
  • round, square, rectangular

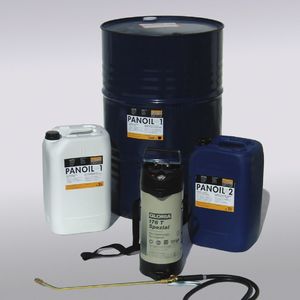

Release agents

PANALEX PANOIL is a release agent with additives that facilitate the release process while ensuring utmost protection for the facing. Its unique composition forms a homogeneous, inert film for separating formwork and mixture to enhance the aesthetic quality of the exposed concrete.


Applications: smooth/ rough formwork; steel, wooden or cement formwork.

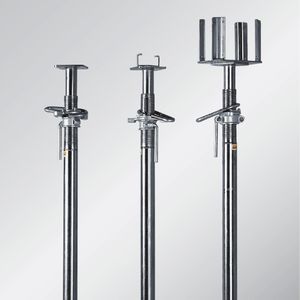

Props and accessories

PANAPUNT AP-FC: high performance, low price
High load-bearing capacity steel props for ceiling boardings, painted with or without rotating quick-lowering mechanism. Can be extended up to 5.50 m. The ideal prop for beams for wooden formwork.

PANAPUNT AP-FA: high load-bearing capacity prop with quick-lowering mechanism
High-capacity steel props for ceiling boardings, galvanised or painted, with or without rotating quick-lowering mechanism. Can be extended up to 5.50 m. The ideal prop for beams for wooden formwork.

Screw clamps

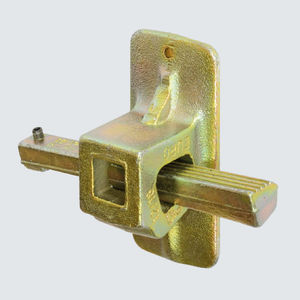

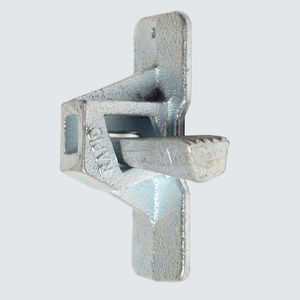

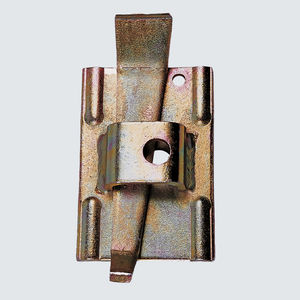

RAPID® Standard clamp, galvanised

  • For tie rods from Ø 6 mm to Ø 10 mm
  • Base 40 x 105 mm
  • Cold galvanised
  • 0.41 kg/ pcs.
Code No.Pcs./ BagBags/PalletPieces/Palletkg/Pallet
FECERSRCZ50502.5001.025

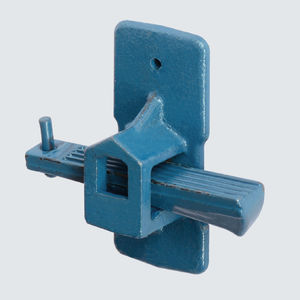

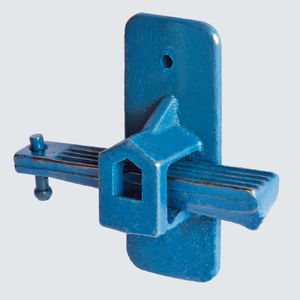

RAPID® clamp, blue painted

  • For tie rods from Ø 6 mm to Ø 10 mm
  • Base 40 x 101 mm
  • Blue paint
  • 0.37 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECERSRCV280403.2001.184

RAPID® Mayor clamp, galvanised

  • For tie rods from Ø 8 mm to Ø 12 mm
  • Base 52 x 118 mm
  • Cold galvanised
  • 0.53 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECERMRCZ50402.0001.060

PANALEX RAPID® Mayor clamp, blue painted

  • For tie rods from Ø 8 mm to Ø 12 mm
  • Base 45 x 102 mm
  • Blue paint
  • 0.42 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECERMRCV270402.8001.176

RAPID® Super clamp

  • For tie rods from Ø 12 mm to Ø 18 mm
  • Base 60 x 130 mm
  • Yellow paint
  • 1.35 kg/pcs.
Code NoPcs./BagBags/PalletPieces/Palletkg/Pallet
FECERC102025500675

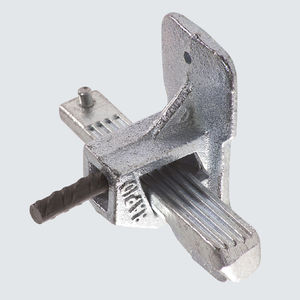

Clamp RAPID® CIAO

  • For tie rods up to Ø 8 mm
  • Base 60 x 90 mm
  • Cold galvanised
  • 0.25 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECERC1100404.0001.000

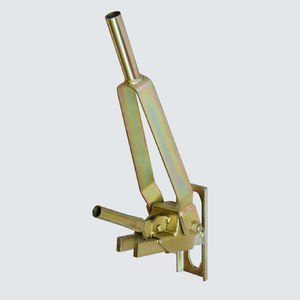

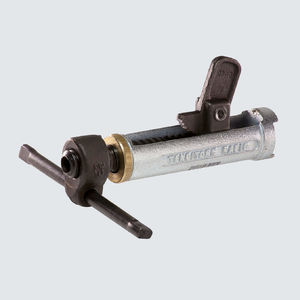

Tensioner RAPID® galvanised

  • Tensioner for RAPID and CIAO clamps
  • For tie rods from Ø 6 mm to Ø 12 mm
  • Cold galvanised
  • Seperatly packaged
  • 1.40 kg/pcs.
Code No.Pieces/Boxkg/Box
FECERTRZ1014

Tensioner SUPER RAPID® galvanised

  • Turnbuckle for RAPID® SUPER clamps
  • For tie rods from Ø 12 mm to Ø 18 mm
  • Cold galvanised
  • 3.40 kg/pcs.
Code No.Pieces/Boxkg/Box
FECERTRSZ13.4

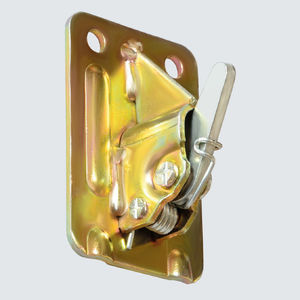

Clamp CLIP® galvanised

  • For tie rods from Ø 6 mm to Ø 10 mm
  • Base 75 x 110 mm
  • Cold galvanised
  • Loading capacity 10 kN
  • 0.37 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECECX1LZ50502.500925

Clamp SUPERCLIP 8-12 mm

  • For tie rods from Ø 8 mm to Ø 12 mm
  • Base 75 x 110 mm
  • Cold galvanised
  • 0.43 kg/pcs.

Code No.Pcs./BoxBoxes/PalletPieces/Palletkg/Pallet
FECECR1250502.5001.075

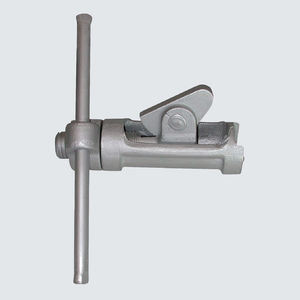

Tensioner CLIP®

  • Lever tensioner for CLIP® clamps
  • For tie rods from Ø 6 mm to Ø 12 mm
  • Cold galvanised
  • 2.90 kg/pcs.
Code No.Pieces/BoxBox/PalletPieces/Palletkg/Pallet
FECECT1250100290

Connecting Plate MASS

  • For round formworks
  • Clamping with metal spacer and wedge
  • Connection struts to be fixed with tie rods from Ø 12 mm to Ø 16 mm
  • Powder-coated
  • 0.215 kg/pcs.
Code No.Pcs./BagBags/PalletPieces/Palletkg/Pallet
FECECM1100505.0001.075

Anchors and accessories

Cold-rolled tie rod Ø 12.5 mm

  • Cold rolled (S850)
  • Black weldable
  • Loading capacity 50 kN (DIN 18216)
  • Breaking load 130 kN
  • Weight 1.04 kg/m
  • Pitch thread 9 mm
  • Other lengths, up to 6 m, on request
Code No.L/cma1/mma2/mmkg/Pcs.Pcs./Bundle
FECEB5R600N60012,5146,24100

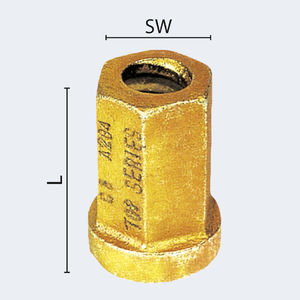

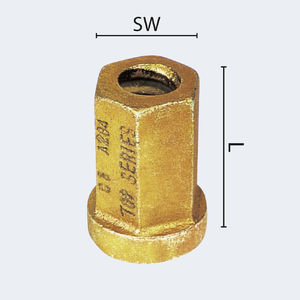

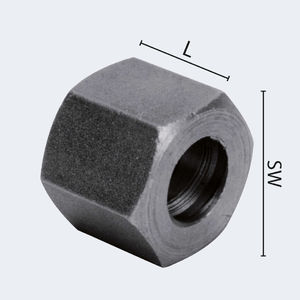

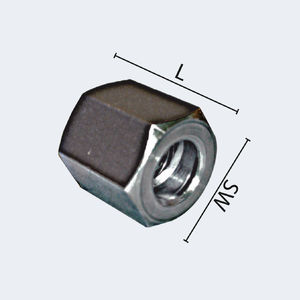

Hexagon nut Ø 12.5 mm - L 50

  • Steel UNI 4830/80
  • Loading capcity 50 kN
  • Not galvanised
  • Weldable
  • 0.13 kg/pcs.
Code No.L/mmWrench/mmPcs./Bagkg/Bag
FECEA505N502420026

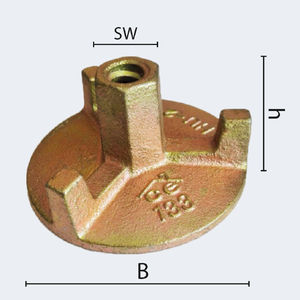

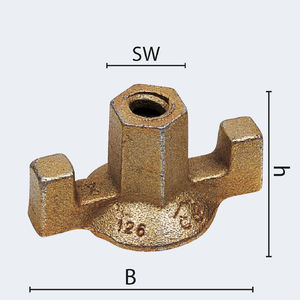

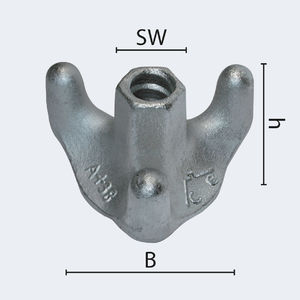

Butterfly nut Ø 12.5 mm - B 70

  • Malleable iron
  • Base Ø 70 mm
  • Loading capacity 50 kN
  • Cold galvanised
  • 0,44 kg/pcs.
Code No. B/mmh/mmWrench/mmPcs./Bagkg/Bag
FECEA527Z7050276026,4

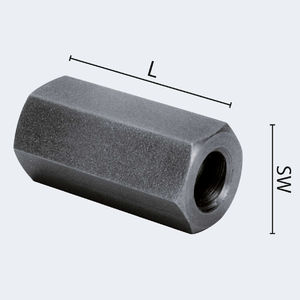

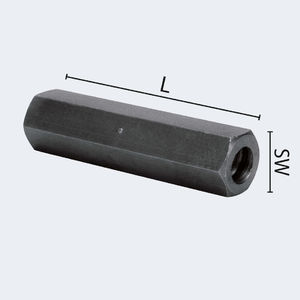

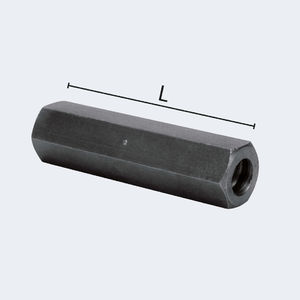

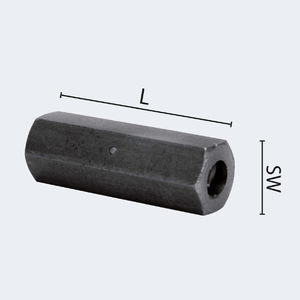

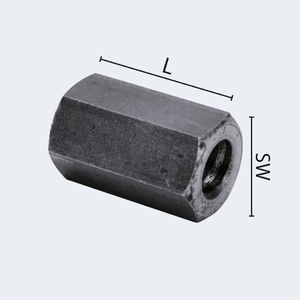

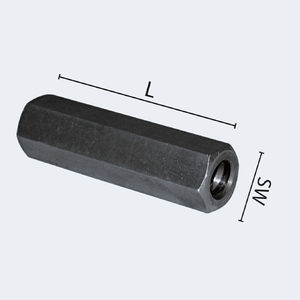

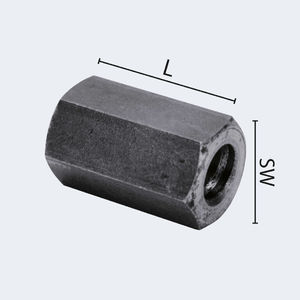

Coupler sleeve Ø 12.5 mm - L 90

  • Steel S355J2G3
  • Loading capacity 50 kN
  • Not galvanised
  • Weldable
  • 0.24 kg/pcs.
Code No.L/mmWrench/mmPcs./Bagkg/Bag
FECEA559N902412028.8

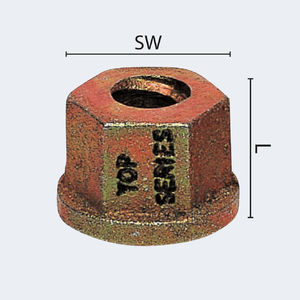

Collar nut Ø 12.5 mm - L 25

  • Loading capacity 50 kN
  • Not galvanised
  • Weldable
  • 0.065 kg/pcs.
Code No.L/mmWrench/mmPcs./Bagkg/Bag
FECEA525N252430019,5

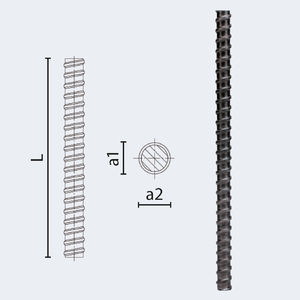

Hot-rolled tie rod Ø 15 mm

  • Hot rolled (ST900/1100)
  • Loading capacity 90 kN (DIN 18216)
  • Breaking load 190 kN
  • Weight 1.44 kg/m
  • Pitch thread 10 mm
  • Other lengths on request

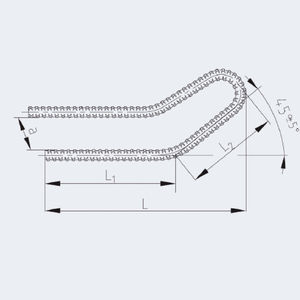

  • Fold € 0,50/pcs. on request
Code No.
(black, weldable)
L/cma1/mma2/mmkg/pcs.Pcs./Bundle
FECEB1S600N60015178,64100
FECEB1S300N30015174,32100
FECEB1S200N20015172,88100
FECEB1S150N15015172,16100
FECEB1S120N12015171,73100
FECEB1S100N10015171,44100
FECEB1S090N9015171,30100
FECEB1S075N7515171,08100



Code No.
(black, conditionally weldable)
L/cm       a1/mm      a2/mm         kg/pcs.        Pcs./Bundle
FECEB1L600N60015178,64100
FECEB1L300N30015174,32100
FECEB1L200N20015172,88100
FECEB1L150N15015172,16100
FECEB1L120N12015171,73100
FECEB1L100N10015171,44100
FECEB1L090N9015171,30100
FECEB1L075N7515171,08100

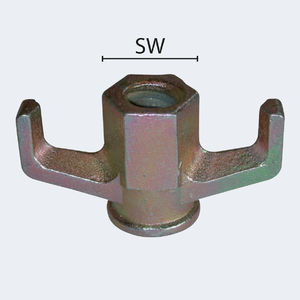

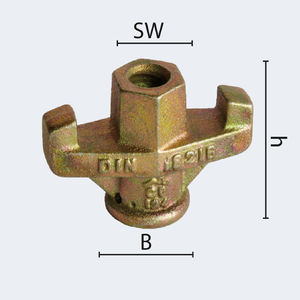

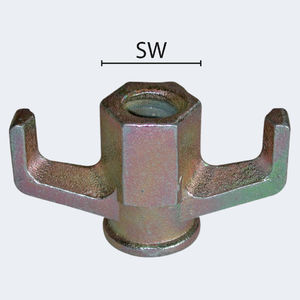

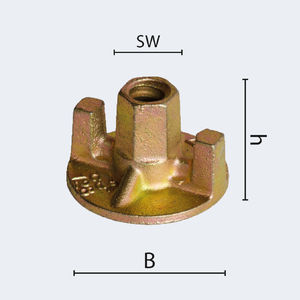

Butterfly nut Ø 15 mm

  • Malleable iron
  • Base Ø 38 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.42 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA124Z38593070352.4501.029

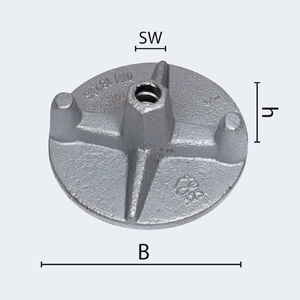

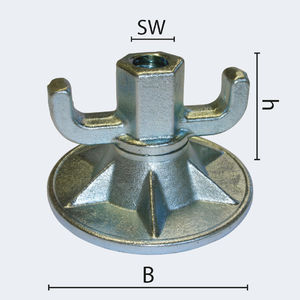

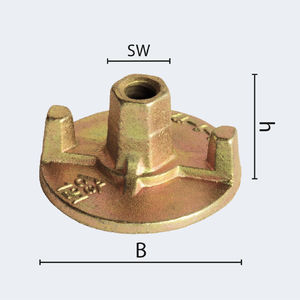

Flange nut Ø 15 mm - B 60

  • Malleable iron
  • Base Ø 60 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.49 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA126Z60533060352.1001.029

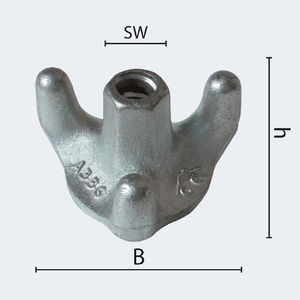

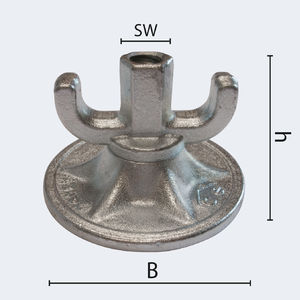

TRITURBO Ø 15 mm - B 65

  • Forged steel
  • Base Ø 65 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.60 kg/pcs.
Code No.B/mmh/mmWrench/mmPieces/
Bag
Bags/
Pallet
Pcs./
Bags
kg/
Pallet
FECEA336Z65502750301.500900

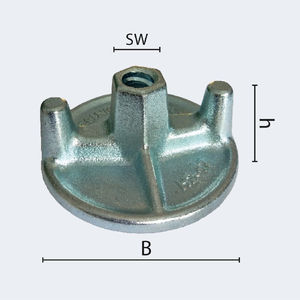

Flange nut Ø 15 mm - B 80

  • Malleable iron
  • Base Ø 80 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.42 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECE128Z80503050502.5001.050

Flange nut Ø 15 mm - B 100

  • Malleable iron
  • Base Ø 100 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.65 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA121Z100503040451.8001.170

Flange nut Ø 15 mm - B 110

  • Forged steel
  • Base Ø 110 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.88 kg/pcs.
Code No.b/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA322Z110502730501.5001.320

Flange nut Ø 15 mm - B 120

  • Malleable iron
  • Base Ø 120 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.96 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA133Z120553025441.1001.056

Flange nut Ø 15 mm - B 130

  • Forged steel
  • Base Ø 130 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 1.20 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA325Z130502730351.0501.260

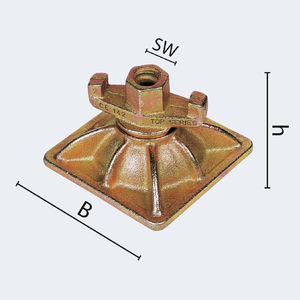

Plate COMBI Ø 15 mm - B 120

  • Forged steel
  • Plate Ø 120 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 1.16 kg/pcs.
Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA346Z120802725401.0001.160

Plate COMBI Ø 15 mm - B 120 - 10 G

- Malleable iron
- 120 x 120 x 10 mm
- Adjustment angle up to 10°
- Loading capacity 90 kN
- Cold galvanised
- 1.25 kg/pcs.

Code No.B/mmh/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA142Z27803025328001.000

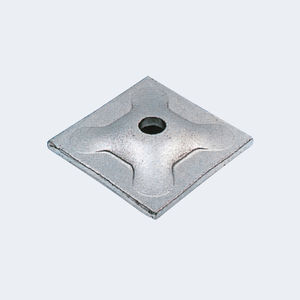

Plate Ø 15 mm - B 120 x 120 x 6

  • Steel
  • 120 x 120 x 6 mm
  • Hole Ø 20 mm
  • Cold galvanised
  • 0.65 kg/pcs.
Code No.Pcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA166Z40401.6001.040

Hexagon nut Ø 15 mm - L 50

  • Malleable iron
  • Base Ø 40 mm
  • Loading capacity 90 kN
  • Cold galvanised
  • 0.23 kg/pcs.
Code No.L/mmWrench/mm

Pcs./Bag

Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA104Z5030130354.5501.047

Collar nut Ø 15 mm - L 25

  • Malleable iron
  • Base Ø 38 mm
  • Cold galvanised
  • 0.115 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA101Z2530250358.7501.006

Collar nut Ø 15 mm - L 25

  • Steel UNI 4838/50
  • Weldable
  • 0.105 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA183N (not galvanised)2530200408.000840
FECEA183Z (galvanisedt)2530200408.000840

Waterstop sleeve

  • Malleable iron
  • For spacer tubhes with internal diameter of 26 mm
  • Loading capacity 90 kN
  • Not galvanised
  • 0.54 kg/pcs.
Code No.L/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA157NS11250402.0001.080

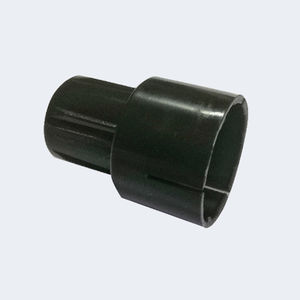

Fitting PVC for waterstop

  • PVC
  • Ø 26-22 mm
  • Length 40 mm
  • for art. FECEA157NS
  • 0.0034 kg/pcs.
Code No.L/mmPcs./Bagkg/Bag
FECEARP402500,85









Hexagon nut Ø 15 mm - L 50, L 70

  • Steel UNI 4838/80
  • Loading capacity 90 kN
  • Weldable
  • FECEA105: 0.220 kg/pcs.
  • FECEA107: 0.300 kg/pcs.
Code No.L/mmWrench/mmPcs./BagBags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA105N (not galvanised)5030100505.0001.050
FECEA107N (not galvanised)703050703.5001.050
FECEA105Z (galvanised)5030100505.0001.050
FECEA107Z (galvanised)703050703.5001.050

Collar nut Ø 15 mm  - L 90

  • Steel UNI 4838/80
  • Loading capacity 80 kN
  • Weldable
  • 0.38 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA159N (not galvanised)903050552.7501.045
FECEA159Z (galvanised)903050552.7501.045

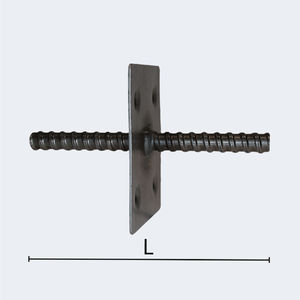

Waterstop with welded plate

  • Plate 120 x 120 mm welded
  • Loading capacity 80 kN
  • Not galvanised
  • Other lengths on request
  • 0.65 kg/pcs.
Code No.L/mm
FECEA530N300

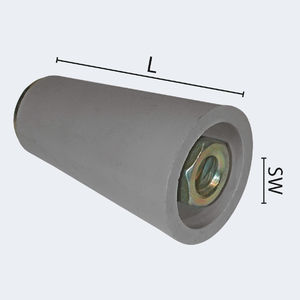

Cone steel - PVC Ø 15 mm - L 100

  • Ø 40 - 60 mm
  • 0.45 kg/pcs
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA5001002750502.5001.125

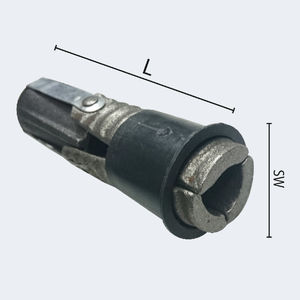

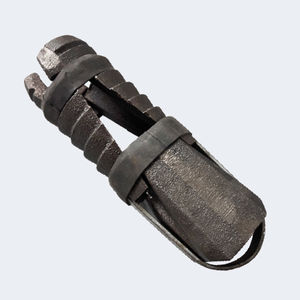

Expansion peg Ø 15 mm - L125

  • For rock or cement anchorage
  • Anchor Ø 15 mm
  • Rock anchorage hole Ø 32 - 37 mm
  • Minimum hole dept 200 mm
  • Loading capacity 90 kN
  • 0.37 kg/pcs.
Code No.L/mmWrench/mmPcs./BagBags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA1535T12511850502.500925

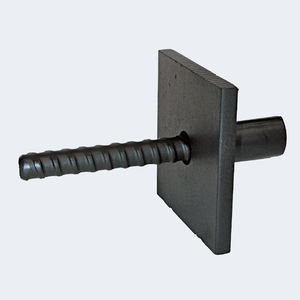

Plate anchor Ø 15 mm - L100

  • For cement anchorage
  • Usable length of the tie rod 100 mm
  • Total length 160 mm
  • Plate 90 x 90 x 10 mm
  • Loading capacity 80 kN
  • Other lengths on request
  • 1.15 kg/pcs.
Code No.kg/Pcs.
FECEA550N1,15

Loop anchor Ø 15 mm - L 550

  • Steel UNI 4838/80
  • Loading capacity 80 kN
  • Weldable
  • not galvanised
  • 1.96 kg/pcs.
Code No.a/mmL/mmL1/mmL2/mmAnglekg/pcs.
FECEABL550N23055036024045° ± 5°1,96

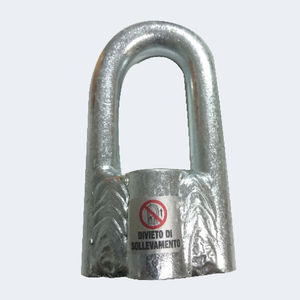

Steel plug anchor Ø 15 mm

  • Steel plug anchor eye
  • Cold galvanised
  • Prohibited for lifting
  • Loading capacity 90 kN
  • 0.60 kg/pcs.
Code No.Pcs./
Bag
Pcs./
Pallet
Bags/
Pallet
kg/
Pallet
FECEA195Z2020010120

Hot rolled tie rod 20 mm
(black, weldable)

  • Hot rolled (ST900/1100)
  • Black, weldable
  • Loading capacity 160 kN (DIN 18216)
  • Weight 2.56 kg/m
  • Pitch thread 10 mm
  • Other lengths, up to 6 m, on requst
Code No.L/mma1/mma2/mmkg/pcs.Piece/Bundle
FECEB2S600N6.000202315.3650

Hot rolled tie rod 20 mm
(galvanised, weldable)

  • Hot rolled (ST900/1100)
  • Galvanised
  • Loading capacity 160 kN (DIN 18216)
  • Breaking load 340 kN
  • Weight 2.56 kg/m
  • Pitch thread 10 mm
  • Other lengths, up to 6 m, on request
Code No.L/mma1/mma2/mmkg/Pcs.Pieces/Bundle
FECEB2L600Z6.000202315.3650

Butterfly nut Ø 20 mm

  • Forged steel
  • Base Ø 42 mm
  • Loading capacity 180 kN
  • Cold galvanised
  • 0.53 kg/pcs.

Code No.Wrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA224Z3650402.0001.060

TRITURBO Flange nut Ø 20 - B 80 mm

  • Forged steel
  • Base Ø 80 mm
  • Loading capacity 160 kN
  • Cold galvanised
  • 1.10 kg/pcs.
Code No.B/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA438Z803625401.0001.100

Flange nut Ø 20 - B 130 mm

  • Forged steel
  • Base Ø 130 mm
  • Loading capacity 160 kN
  • Cold galvanised
  • 1.20 kg/pcs.
Code No.B/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA425Z130361540600720

Plate COMBI Ø 20 - B 130 mm

  • Forged steel
  • Plate Ø 130 mm
  • Loading capacity 160 kN
  • Cold galvanised
  • 1.45 kg/pcs.
Code No.B/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA447Z1303615466901.000

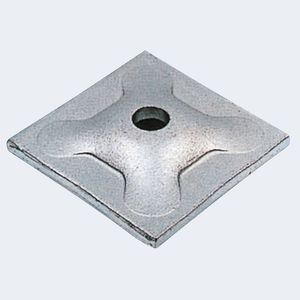

Plate Ø 20 mm 130 x 130 x 12

  • Steel
  • 130 x 130 x 12 mm
  • Hole Ø 25 mm
  • Cold galvanised
  • 1.72 kg/pcs.
Code No.Pcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA269Z15406001.032

Hexagon nut Ø 20 mm - L 65

  • Malleable iron
  • Base Ø 45 mm
  • Loading capacity 160 kN
  • Cold galvanised
  • 0.40 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA204Z653675352.6251.050

Hexagon nut Ø 20 mm - L 70

  • Steel UNI 4838/80
  • Loading capacity 90 kN
  • Weldable
  • 0.36 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA270N (not galvanised)703650552.750990
FECEA270Z (galvanised)703650552.750990

Collar nut Ø 20 mm - L 35

  • Steel UNI 4838/80
  • Weldable
  • 0.17 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA235N (not galvanised)3536100707.0001.190
FECEA235Z (galvanised)3536100707.0001.190

Sleeve Ø 20 mm - L 140

  • Steel UNI 4838/80
  • Loading capacity 160 kN
  • Weldable
  • 0.75 kg/pcs.
Code No.L/mmWrench/mmPcs./
Bag
Bags/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA256N (not galvanised)1403625551.3751.031
FECEA256Z (galvanised)1403625551.3751.031

Expansion peg Ø 20

  • For rock or cement anchorage
  • Anchor Ø 20 mm
  • Rock anchorage hole Ø 32 mm - 37 mm
  • Minimum hole dept 230 mm
  • Loading capacity (depends on rock/ cement quality)
  • 0.63 kg/pcs.
Code No.Pcs./
Box
Boxes/
Pallet
Pcs./
Pallet
kg/
Pallet
FECEA2350T610600378

Hot rolled tie rod 26.5 mm
(black, not weldable)

  • Hot rolled (ST950/1050)
  • Black, not weldable
  • Loading capacity 300 kN (DIN 18216)
  • Weight 4.48 kg/m
  • Pitch thread 13 mm
  • Other lengths, up to 6 m, on request
Code No.L/mma1/mma2/mmkg/pcs.Pcs./Bundle
FECEB6L600N 6.00026.53026.8850

Butterfly nut Ø 26.5 mm

  • Malleable iron
  • Base Ø 52 mm
  • Loading capacity 260 kN
  • Cold galvanised
  • 0.89 kg/pcs.
Code No.Wrench/mmPcs./Bag
FECEA624Z4325

Hexagon nut Ø 26.5 mm - H 80

  • Steel S355J2G3
  • Loading capacity 260 kN
  • Not galvanised
  • Weldable
  • 0.73 kg/pcs.
Code No.L/mmWrench/mmPcs./Bag
FECEA240N804625

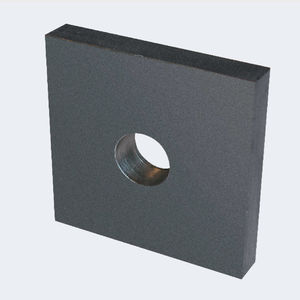

Plate Ø 26.5 mm - 120

  • Steel S235JR
  • 120 x 120 x 20 mm
  • Hole Ø 32 mm
  • Not galvanised
  • 2.1 kg/pcs.
Code No.Pcs./Bag
FECEA369N15

Sleeve Ø 26.5 mm - H150

  • Steel UNI S355J2G3
  • Loading capacity 260 kN
  • Weldable
  • Not galvanised
  • 1.37 kg/pcs.
Code No.L/mmWrench/mmPcs./Bag
FECEA265N1504625

Scaffolding joints

Basic coupler Ø 48

  • For tube Ø 48 mm
  • Forged steel
  • Flanged nut wrench 22 mm
  • Cold galvanised
  • EN 74 certified
  • 1.29 kg/pcs.
Code No.Pcs./Bagkg/BagPcs./PalletKg/Pallet
FECEG600G2025.8500645

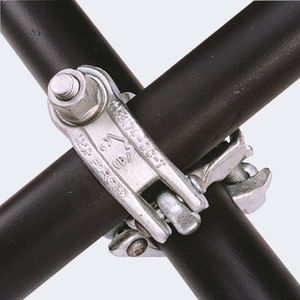

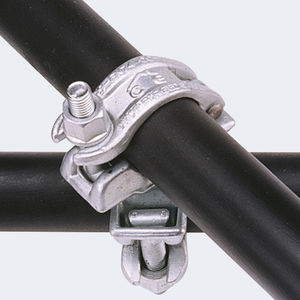

Rotating coupler Ø 48

  • For tube Ø 48 mm
  • Forged steel
  • Flanged nut wrench 22 mm
  • Cold galvanised
  • EN 74 certified
  • 1.50 kg/pcs.
    Code No.Pcs./Bagkg/BagPcs./PalletKg/Pallet
    FECEG610G2030500750

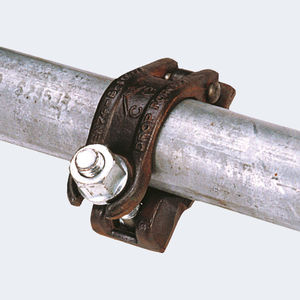

    Basic coupler, black Ø 48

    • For tube Ø 48 mm
    • Forged steel
    • Flanged nut wrench 22 mm
    • Not galvanised
    • 0.72 kg/pcs.
    Code No.Pcs./Bagkg/Bag
    FECEG640N4028.8

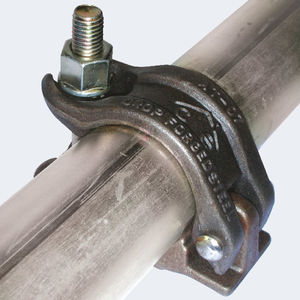

    Traction coupler

    • For tube Ø 48 mm
    • Forged steel
    • Flanged nut wrench 22 mm
    • Hot galvanised
    • 1,50 kg/pcs.
    Code No.Pcs./Bagkg/Bag
    FECEG650Z2030

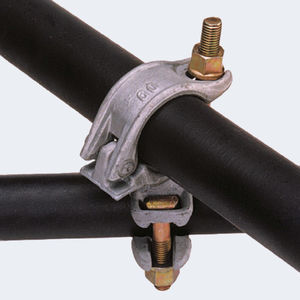

    Basic coupler Ø 48 - 60

    • For tube Ø 48 and 60 mm
    • Forged steel
    • Flanged nut wrench 22 mm
    • Hot galvanised
    • 1.70 kg/pcs.
      Code No.Pcs./Bagkg/Bag
      FECEG605Z2034

      Rotating coupler Ø 48 - Ø 60

      • For tube Ø 48 and 60 mm
      • Forged steel
      • Flanged nut wrench 22 mm
      • Hot galvanised
      • 1.63 kg/pcs.
      Code No.Pcs./Bagkg/Bag
      FECEG615Z2032.6

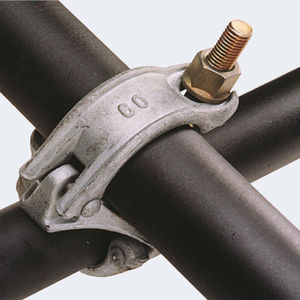

      Basic coupler, black Ø 60

      • For tube Ø 60 mm
      • Forged steel
      • Flanged nut wrench 22 mm
      • Black
      • 1.05 kg/pcs.
      Code No.Pcs./Bagkg/BagPcs./PalletKg/Pallet
      FECEG660N3031.5600630

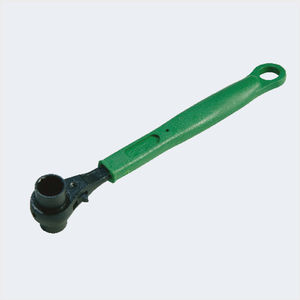

      Ratchet for scaffolding joints 21/22

      • Ratchet with antislip plastic handle.
      Code No.kg/Pcs.
      FECEG695PV0.565
